Double girder bridge crane GDMJ 50t/15,4m with a rotary hoist, ELTRAF


Year of realization 2014-2015
Customer PKD, s.r.o., Dačice
Place of installation New production hall of ELTRAF, a.s., Kralice
Range of delivery
Delivery and mounting of double girder bridge crane GDMJ 50t/15,4m with a rotary hoist
Delivery and mounting of double girder bridge crane GDMJ 16t/12m

The main parameters of bridge crane GDMJ 50t/15,4m with a rotary hoist:
-capacity: 50t
-span: 15,4m
-Lifting height 9,5m
-Control: remote radio control with a push-button control panel
-lifting speed:
   for capacity do 16t: 0-8 m/min – smooth speed regulation
   for capacity 16-50t: 0-4 m/min – smooth speed regulation
-hoist travel speed: 0-20 m/min – smooth speed regulation
-hoist rotary speed: 0-1 ot/min – smooth speed regulation
-bridge travel speed
   for capacity do 16t: 0-80 m/min – smooth speed regulation
   for capacity 16-50t: 0-40 m/min – smooth speed regulation
-crane is equipped with and electric winch of GWF 50t (2x25t) – with a lifting unit and a rotary trolley
-crane is equipped with a device GIGAtronicTWD for monitoring of operation state in accordance with ČSN ISO 12482-1.

Výroba mostového jeřábu GDMJ 50t/15,4m

DSC_2760DSC_2766DSC_2768

Mostový jeřáb GDMJ 50t/15,4m s otočnou kočkou - nakládka

Nakladka jerabu GDMJ 50t-15,4m_1Nakladka jerabu GDMJ 50t-15,4m_2Nakladka jerabu GDMJ 50t-15,4m_3Nakladka jerabu GDMJ 50t-15,4m_4Nakladka jerabu GDMJ 50t-15,4m_5Nakladka jerabu GDMJ 50t-15,4m_6

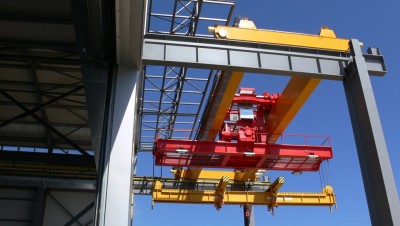

Mostový jeřáb GDMJ 50t/15,4m s otočnou kočkou - montáž v ELTRAF

Montaz jerabu GDMJ 16t-12m_01Montaz jerabu GDMJ 16t-12m_02Montaz jerabu GDMJ 16t-12m_03Montaz jerabu GDMJ 16t-12m_04Montaz jerabu GDMJ 16t-12m_05Montaz jerabu GDMJ 50t-15,4m_01Montaz jerabu GDMJ 50t-15,4m_02Montaz jerabu GDMJ 50t-15,4m_03Montaz jerabu GDMJ 50t-15,4m_04Montaz jerabu GDMJ 50t-15,4m_05Montaz jerabu GDMJ 50t-15,4m_06Montaz jerabu GDMJ 50t-15,4m_07Montaz jerabu GDMJ 50t-15,4m_08Montaz jerabu GDMJ 50t-15,4m_09Montaz jerabu GDMJ 50t-15,4m_10

Jeřáby GDMJ 50t/15,4m a GDMJ 16t/12m v provozu

Dvounosnkoovy mostovy jerab GDMJ 50t-15,4m_01Dvounosnkoovy mostovy jerab GDMJ 50t-15,4m_02Dvounosnkoovy mostovy jerab GDMJ 50t-15,4m_03Dvounosnkoovy mostovy jerab GDMJ 50t-15,4m_04Dvounosnkoovy mostovy jerab GDMJ 50t-15,4m_05Dvounosnkoovy mostovy jerab GDMJ 50t-15,4m_06Dvounosnkoovy mostovy jerab GDMJ 50t-15,4m_10x15Jerab GDMJ 16t-12m_01Jerab GDMJ 16t-12m_02Jerab GDMJ 16t-12m_03
