Bridge crane GIGA GDMJ 40t/20t/22,2m and reconstruction of SNINA and NOPO cranes for ŠKODA AUTO Mladá Boleslav

Year of realization 2020
Customer ŠKODA AUTO, a.s.
Place of installation Production plant of ŠKODA AUTO, a.s., Mladá Boleslav
Scope of delivery
I. Delivery and mounting of a double-girder bridge crane, type GDMJ 40t/20t/22m.
The crane is equipped with two hoists with a special grab-type rope guide with pushing rubbered rolls:
- main lift - GWF 40t-8/2 with lifting capacity of 40t
- auxilliary lift - GWF 20t-4/2 with lifting capacity of 20t
Group classification: A6
Classification of mechanisms of lifting/traversing/travelling: M6/M6/M6
Control: radio with two-position joysticks, with a sling for the fixation around a waist

II. Reconstruction of two bridge cranes of SNINA and NOPO - 32t/16t/22,2m each (new hoists, new bridge travel drives, new electric cabinet, including cabling, and new radio control)
Parameters of the cranes after reparement:
Type: GDMJ 32t/16t/22,2m
Each crane is equipped with two hoists with a special grab-type rope guide with pushing rubbered rolls:
- main lift - GWF 40t-8/2 with lifting capacity of 32t
- auxilliary lift - GWF 20t-4/2 with lifting capacity of 16t
Group classification: A6
Classification of mechanisms of lifting/traversing/travelling: M6/M6/M6
Control: radio with two-position joysticks, with a sling for the fixation around a waist

Each of the cranes is equipped with a new device for the control and monitoring the crane operation - GIGAControl 241. The system of GIGAControl 241 is a complex solution for the control of bridge cranes, which satisfies to the requirements of Industry 4.0. and is fully prepared for the integration into Industry 4.0.

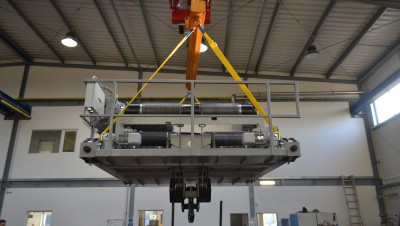

Výroba a expedice jeřábů pro ŠKODA AUTO Mladá Boleslav
